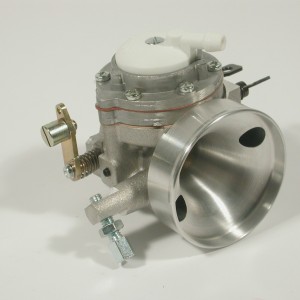

Tryton Carburetors Spare parts » C036 - Carburettor D.18mm Tryton B18
| Code | Description |
|---|---|
| R1 | Cover screw |
| R2 | Tryton Filter cover |
| R3 | Cover gasket |
| R4 | Fuel screen |
| R5 | Carb body screw |
| R6 | Valve body |
| R8 | Pump diaphragm gasket |
| R9 | Pump body |
| R10 | Diaphragm |
| R11 | Diaphragm gasket |
| R12 | Low needle speed |
| R13 | Needle spring |
| R14 | Needle washer |
| R15 | Needle O-ring |
| R17 | Lever screw |
| R18 | Needle valve complete hole D. 1.6 |
| R19 | Lever pin |
| R20 | Inlet lever |
| R21 | Carburettor bolt |
| R22 | Throttle shutter screw |
| R24 | Retainer clip D.3,2 |
| R27 | Shaft spring |
| R31 | Diaphragm and gasket kit |
| R32 | Complete repair kit with valvel hole D. 1.6 |
| R33-D | Hard pressure spring |
| R33-M | Medium pressure spring |
| R33-T | Soft pressure spring |
| R34 | High needle speed |
| R52 | Throttle shutter |
| R36 | Plag D.4 |
| R61 | Register cable guide |
| R63 | Shaft shutter |
| R191 | Pump diaphragm 0,12 Lubrigas |
