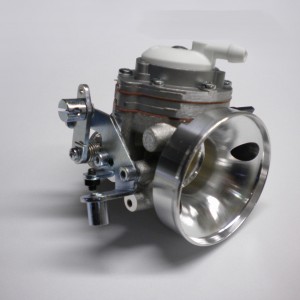

Tryton Carburetors Spare parts » C027 - Carburettor D.26mm TRYTON HB27
| Code | Description |
|---|---|
| R2 | Tryton Filter cover |
| R1 | Cover screw |
| R3 | Cover gasket |
| R4 | Fuel screen |
| R5 | Carb body screw |
| R6 | Valve body |
| R8 | Pump diaphragm gasket |
| R9 | Pump body |
| R10 | Diaphragm |
| R11 | Diaphragm gasket |
| R12 | Low needle speed |
| R15 | Needle O-ring |
| R13 | Needle spring |
| R20 | Inlet lever |
| R14 | Needle washer |
| R17 | Lever screw |
| R19 | Lever pin |
| R21 | Carburettor bolt |
| R22 | Throttle shutter screw |
| R24 | Retainer clip D.3,2 |
| R27 | Shaft spring |
| R28 | Cable support screw |
| R31 | Diaphragm and gasket kit |
| R33-D | Hard pressure spring |
| R33-M | Medium pressure spring |
| R33-T | Soft pressure spring |
| R34 | High needle speed |
| R36 | Plag D.4 |
| R50 | Pump diaphragm 0,10 Mylar |
| R51 | Needle valve complete hole D.2,3 |
| R63 | Shaft shutter |
| R65 | Throttle shutter D.27,8 |
| R191 | Pump diaphragm 0,12 Lubrigas |
| R194 | Complete repair kit with valve hole d. 2,3 |
| R215 | Diaphragm and gasket kit - Mylar |
| R214 | Cable support |
| R216 | Complete repair kit with valve hole D.2,3 - Mylar |
Showing 1-37 of 37 item(s)
