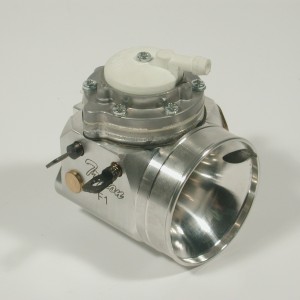

Tryton Carburetors Spare parts » C027 - Carburettor D.30mm Tryton F1
| Code | Description |
|---|---|
| R2 | Tryton Filter cover |
| R3 | Cover gasket |
| R4 | Fuel screen |
| R5 | Carb body screw |
| R6 | Valve body |
| R8 | Pump diaphragm gasket |
| R9 | Pump body |
| R1 | Cover screw |
| R17 | Lever screw |
| R19 | Lever pin |
| R20 | Inlet lever |
| R21 | Carburettor bolt |
| R22 | Throttle shutter screw |
| R33-D | Hard pressure spring |
| R10 | Diaphragm |
| R33-M | Medium pressure spring |
| R11 | Diaphragm gasket |
| R33-T | Soft pressure spring |
| R36 | Plag D.4 |
| R50 | Pump diaphragm 0,10 Mylar |
| R51 | Needle valve complete hole D.2,3 |
| R135 | Shaft shutter O-ring |
| R136 | Shaft shutter spring |
| R137 | Shaft shutter |
| R138 | Stop shaft spring screw |
| R139 | Cable support screw |
| R140 | Cable support |
| R141 | Needle/register spring |
| R142 | Register screw |
| R143 | Needle O-ring |
| R144 | Needle washer |
| R145 | High needle speed |
| R146 | Low needle speed |
| R148 | Complete repair kit SPECIAL |
| R149 | Diaphragm and gasket kit SPECIAL |
| R150 | Throttle shutter D.32,9 |
Showing 1-36 of 36 item(s)
